Description
25 – 50 Engine HP Range

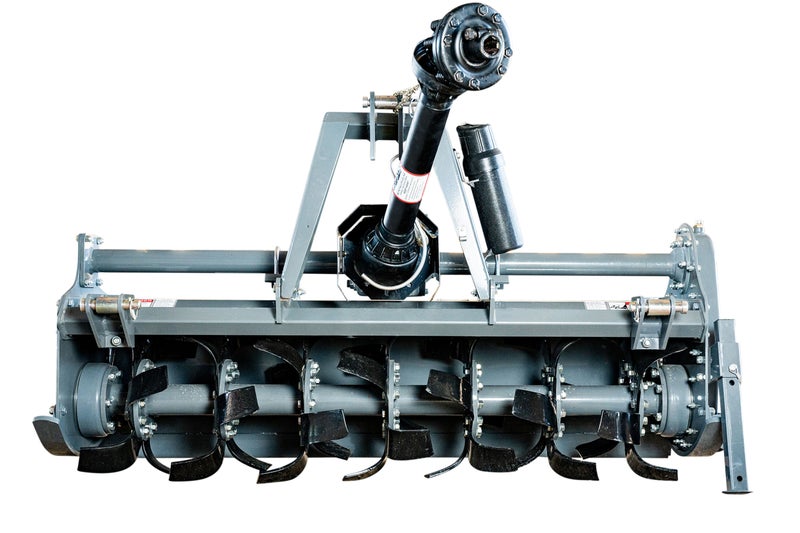

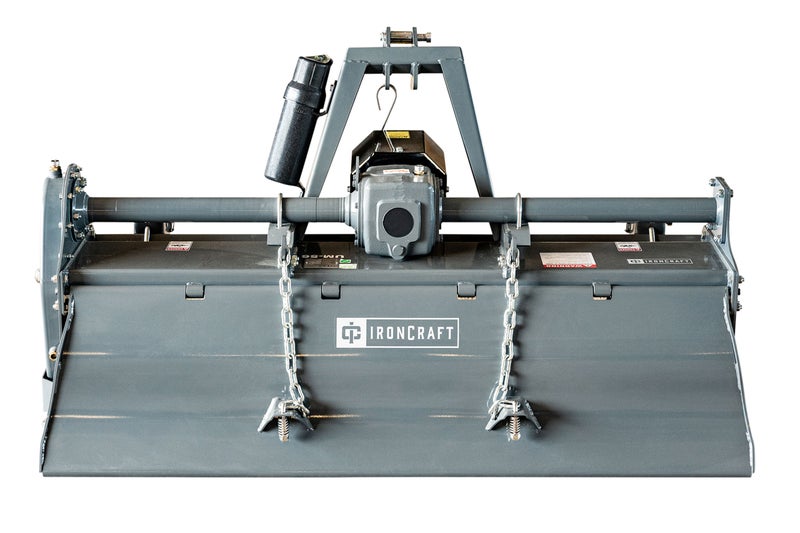

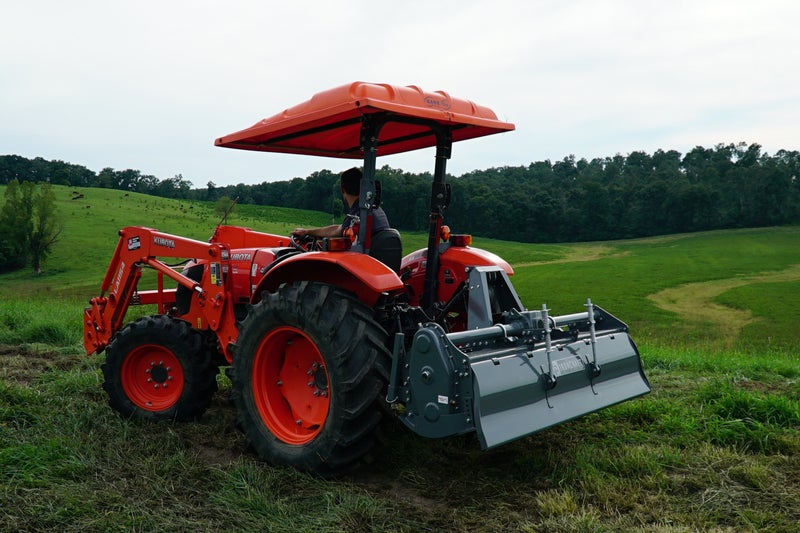

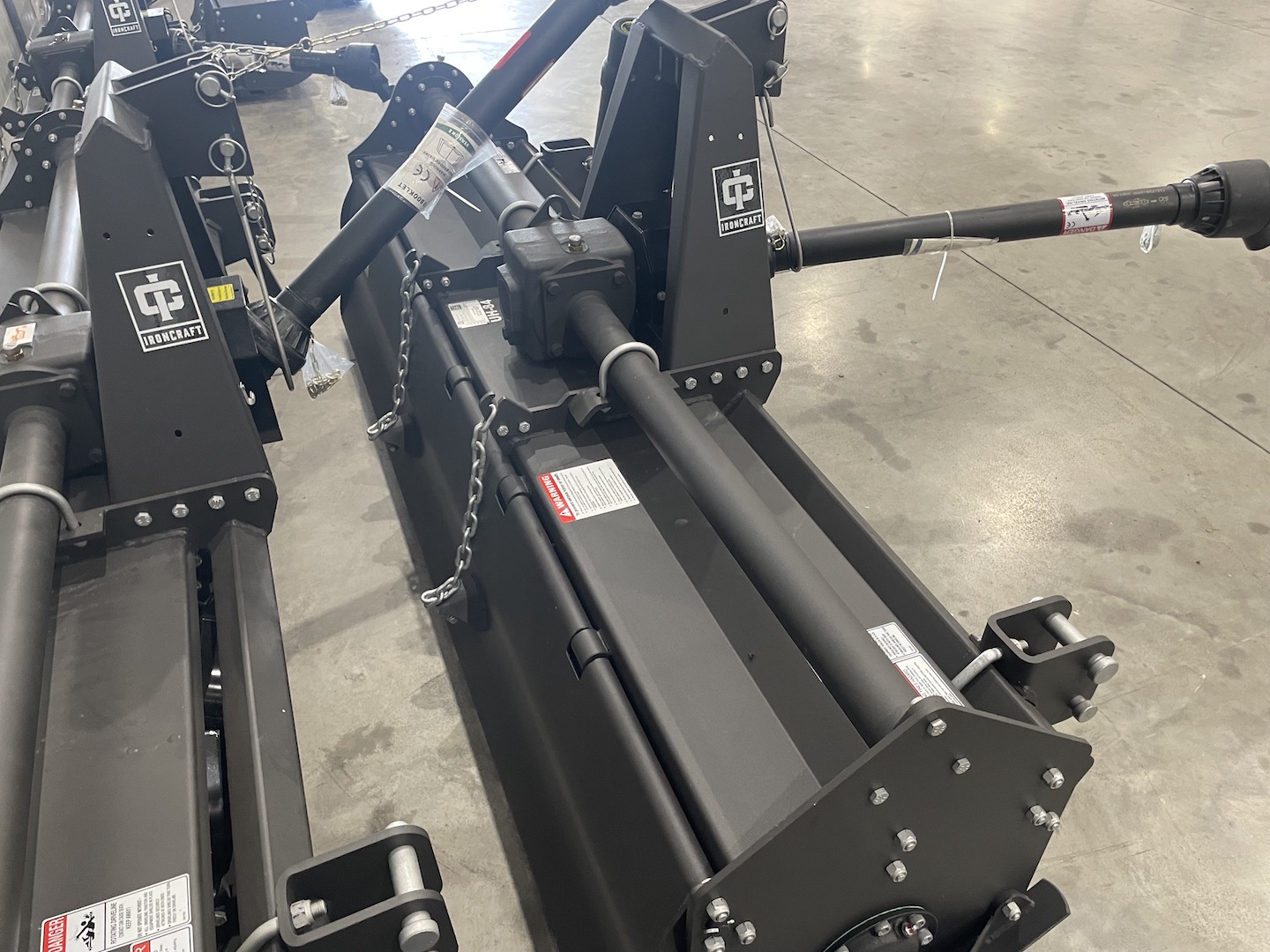

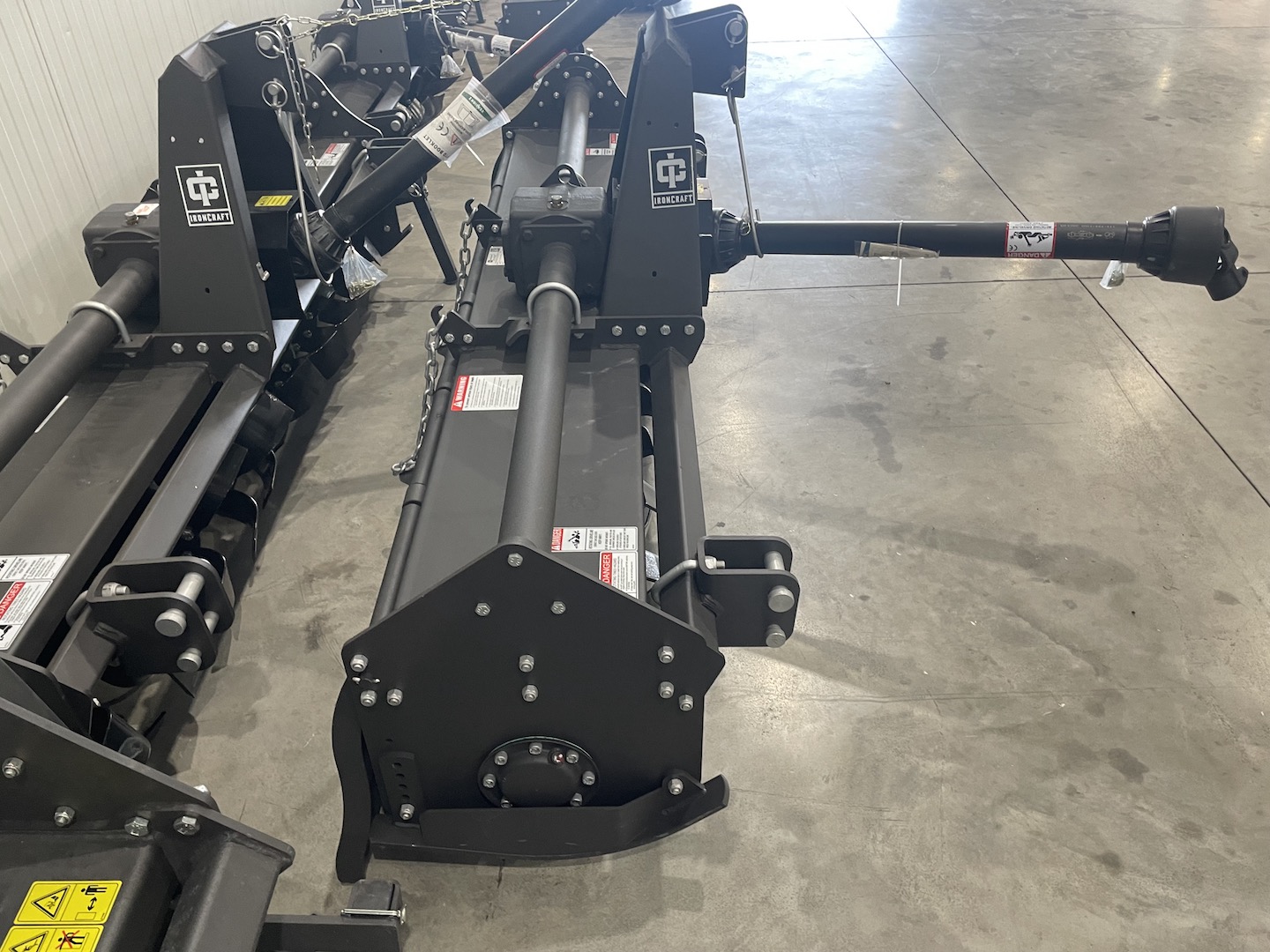

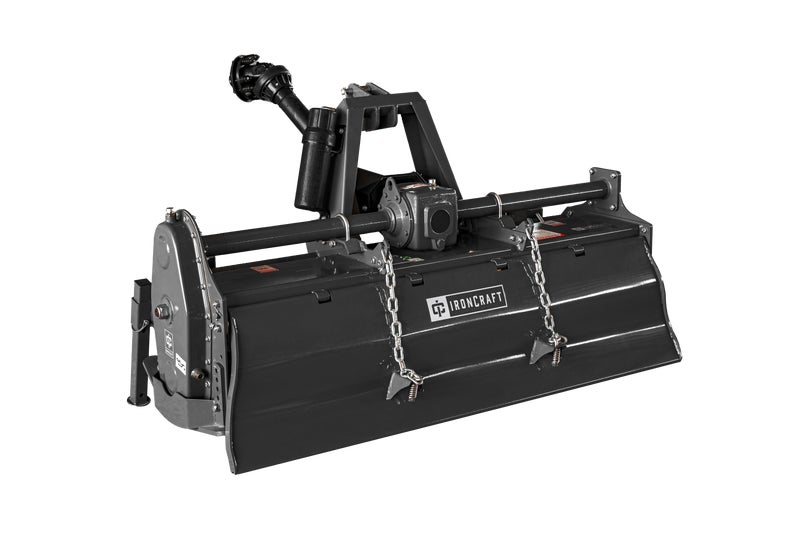

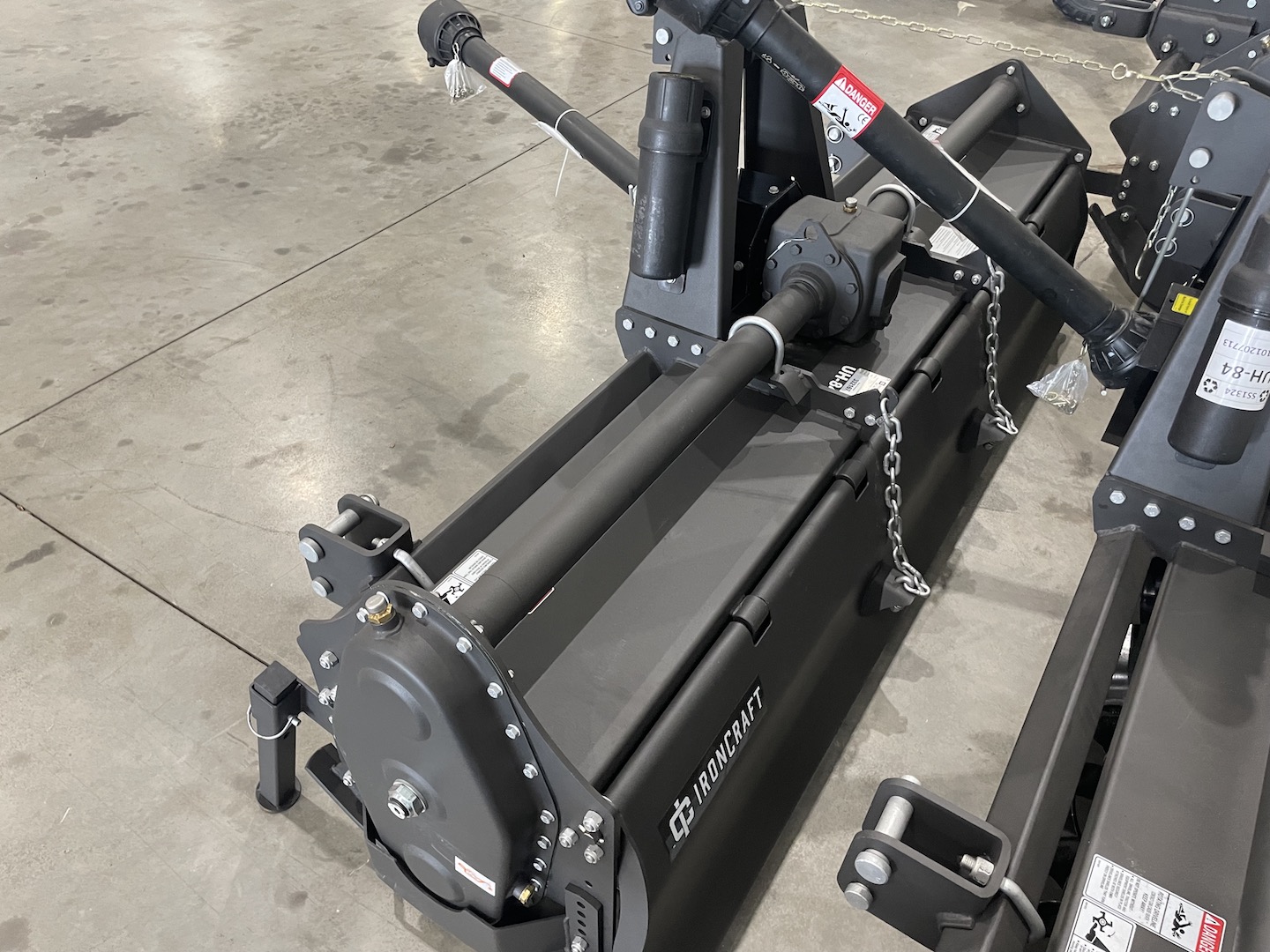

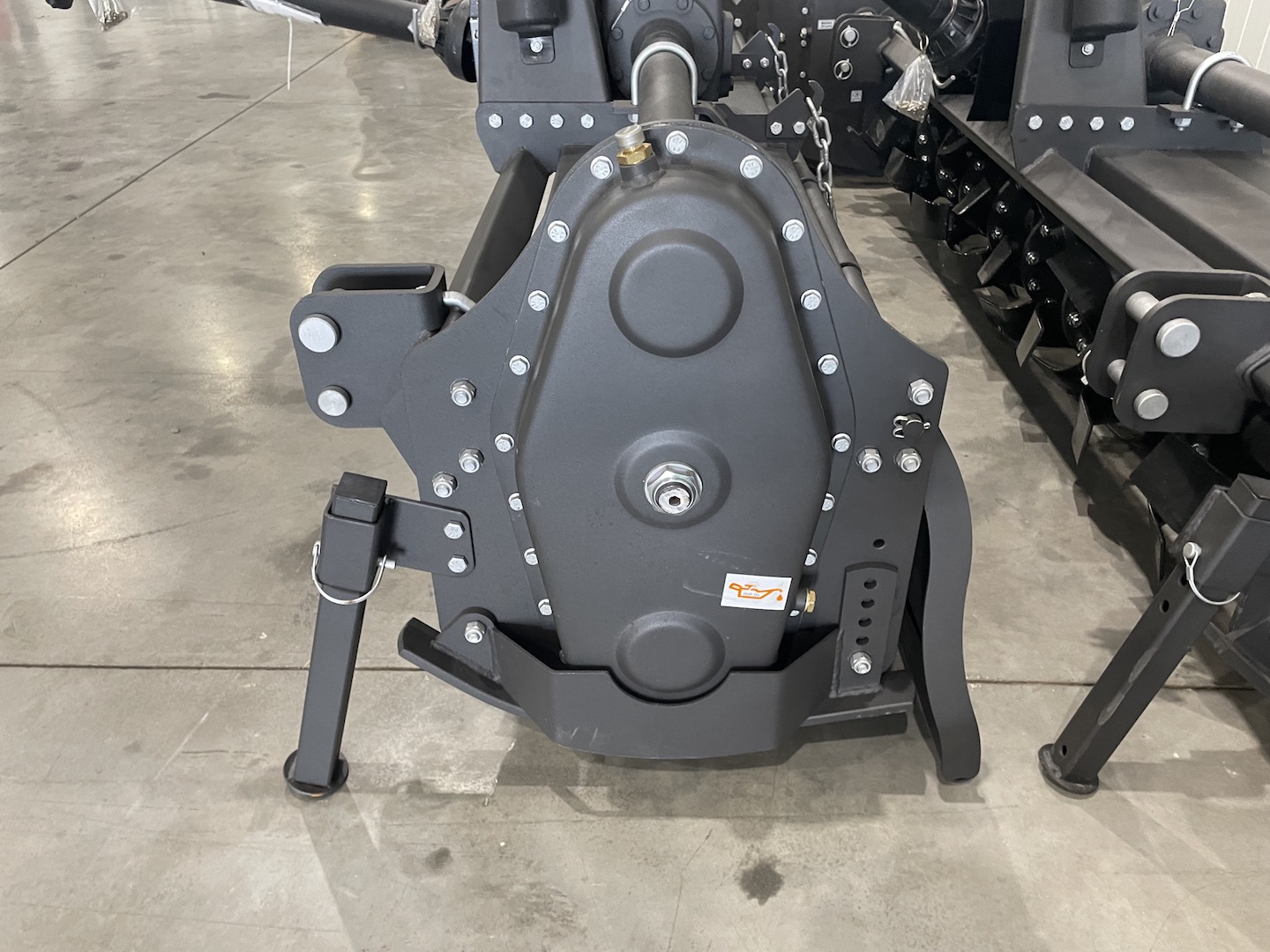

The UM Rotary Tiller is medium-duty and dependable, able to work demanding soils like vineyards or orchards. The UM series is suitable for tractors from 25 to 50 horsepower with a category 1 hitch.
1 Year Warranty
UM-56
| Product | UM-56 |
| Description | 60″ Medium Duty Gear Drive Tiller |
| Rotation | Forward |
| RPM | 540 |
| HP Required | 25 – 50 |
| Working Width | 60″ |
| Max Working Depth | 7″ |
| # of Flanges on Rotor | 7 |
| # of Tines per Flange | 6 |
| Total # of Tines | 42 |
| Rotor Thickness or Diameter | 3″ |
| Rotor Swing Diameter | 17″ |
| Overall Width | 65″ |
| Weight (lbs) | 578 lbs |
| Hitch | Cat 1 |

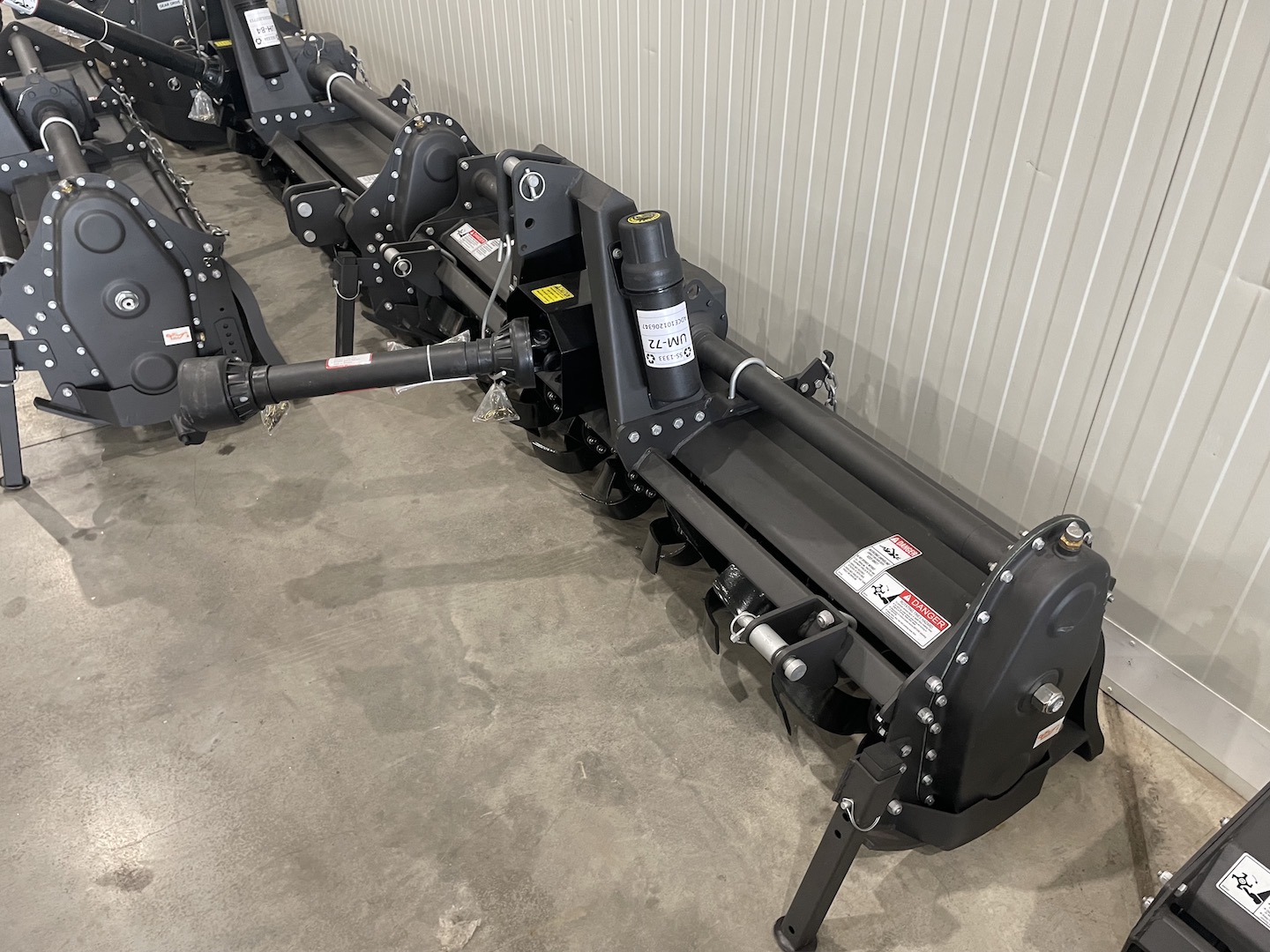

UL-72
| Product | UM-72 |
| Description | 72″ Medium Duty Gear Drive Tiller |
| Rotation | Forward |
| RPM | 540 |
| HP Required | 25 – 50 |
| Working Width | 73″ |
| Max Working Depth | 7″ |
| # of Flanges on Rotor | 9 |
| # of Tines per Flange | 6 |
| Total # of Tines | 54 |
| Rotor Thickness or Diameter | 3″ |
| Rotor Swing Diameter | 17″ |
| Overall Width | 78″ |
| Weight (lbs) | 684 lbs |
| Hitch | Cat 1 |
