Description
35 – 95 Engine HP Range

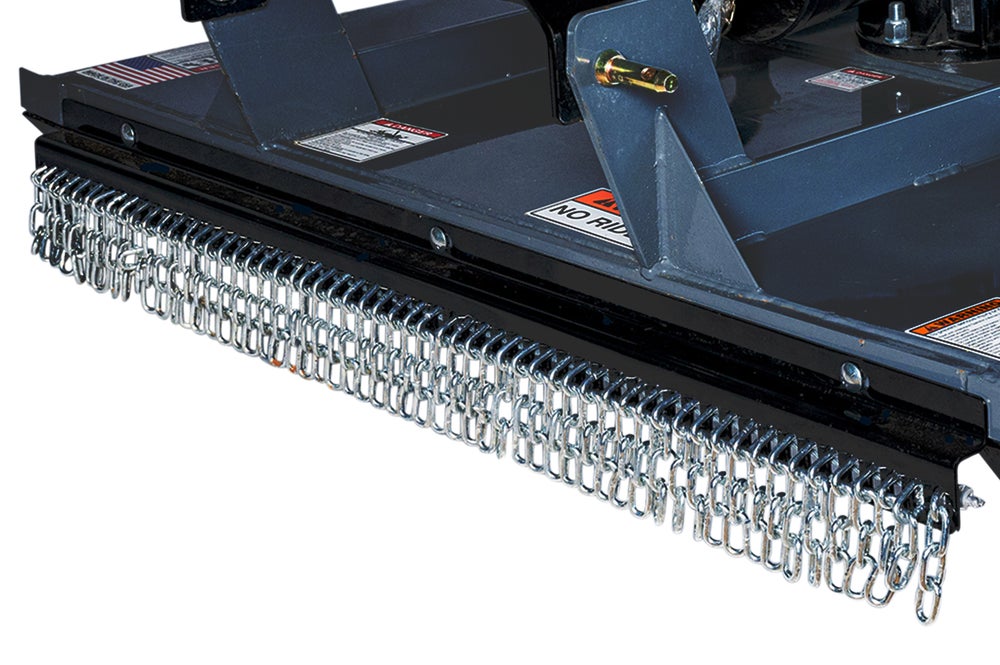

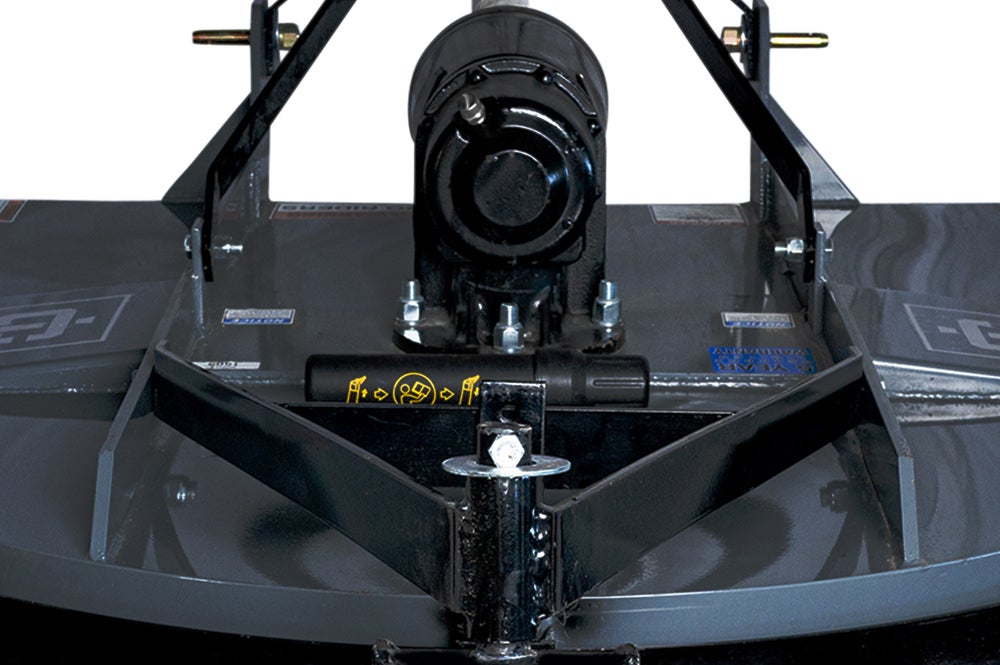

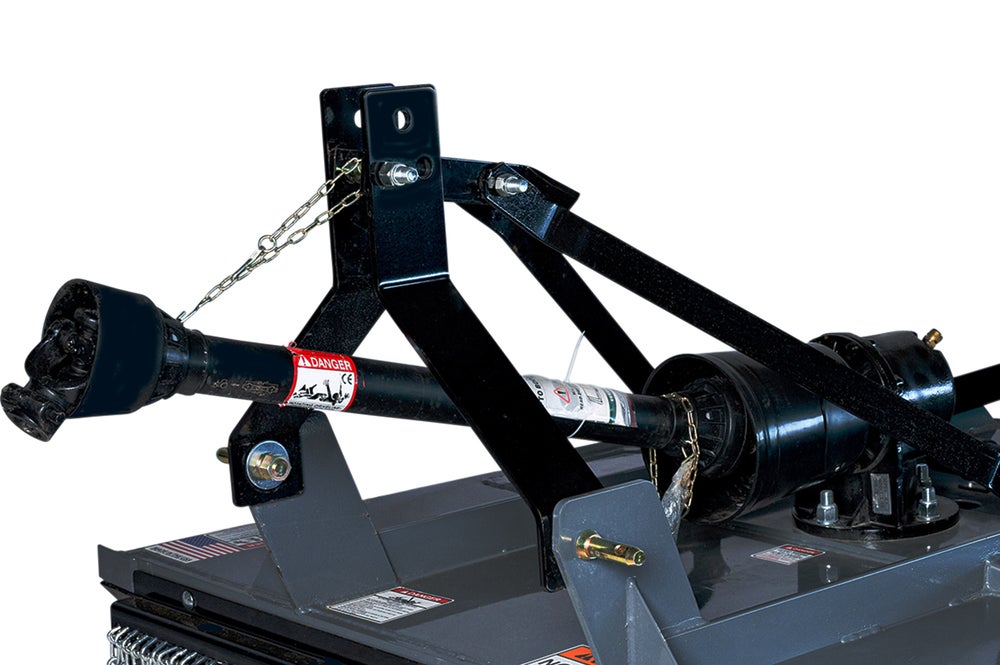

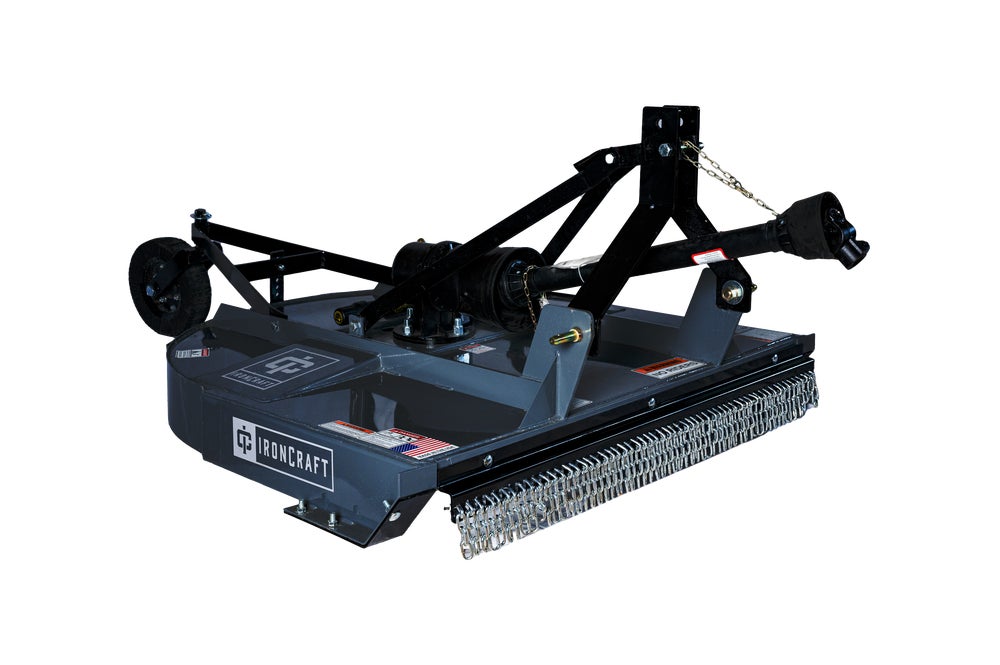

These Roundback Cutters are designed for heavy-duty applications such as weeds, grass, and brush up to 2.5” or 3” diameter, depending on model. These cutters are designed to work with 35 to 95 hp tractors, and are available in 60”, 72”, and 84” widths. These cutters use a single spindle with two free-swinging blades, which reduce the shock of impact when a stationary object is contacted. A slip clutch, if equipped, protects the gearbox and driveline from damage. Standard equipment includes driveline shields and clutch shields. Front and rear chain and rubber discharge shields are available..
1 Year Warranty
Made in the U.S.A.
1505
| Description | 5′ Heavy Duty Roundback Cutter |
| RPM | 540 |
| HP Required | 35 – 80 PTO |
| Working Width | 60″ |
| Weight (lbs) | 745 lbs |
| Cutting Capacity | 2-1/2″ |
| Deck Thickness | 10 GA |
| Side Bands | 7″ |
| PTO Drive Shaft | Series 4 |
| Blade Holder | 1/2″ Plate |
| Gearbox Rating | 100 HP |
| Wheel Type | Laminated |
| Hub Type | Greaseable |
| Hitch | Cat 1 |
| Gearbox Warranty | 5 year limited |
| Guarding Options | Rubber Guards or Chains |
1506
| Description | 6′ Heavy Duty Roundback Cutter |
| RPM | 540 |
| HP Required | 40 – 80 PTO |
| Working Width | 72″ |
| Weight (lbs) | 900 lbs |
| Cutting Capacity | 2-1/2″ |
| Deck Thickness | 10 GA |
| Side Bands | 7″ |
| PTO Drive Shaft | Series 4 |
| Blade Holder | 1/2″ Plate |
| Gearbox Rating | 100 HP |
| Wheel Type | Laminated |
| Hub Type | Greaseable |
| Hitch | Cat 1 |
| Gearbox Warranty | 5 year limited |
| Guarding Options | Rubber Guards or Chains |
